1965-1973 Mustang Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit - 4 Piston 12.88" Rotor 2.50 Offset - Wilwood

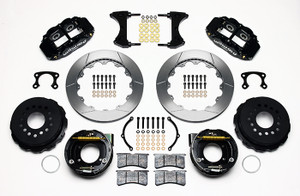

Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit - 4 Piston 12.88" Rotor 2.50 Offset
Forged Narrow Superlite 4R Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Available Options
- Brake Calipers are offered in Black or Red as standard options. Custom brake caliper & logo colors are available upon request. Please contact us directly to place special orders.
- Rotors are available in standard configuration or drilled & slotted.
Components & Specifications
| Kit Summary | |
| Rear End Axle: | Small Ford |
| Axle Offset: | 2.50 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Black or Red Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| Calipers | |
| Type: | Forged Narrow Superlite 4R |
| Finish Color: | Black or Red Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.12 |
| Piston 2 Bore (in): | 1.12 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
| Type: | GT 48 Curved Vane or SRP Drilled Rotor |
| Style: | GT Slotted or SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.1 |
| Vane Count: | 48 CV |
| Design Type: | GT-BLK or SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
| Type: | Big Brake Hat - Flared Bell |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 2.035 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | 5 x 5.00 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0.52 |
Vehicle Fitment Guide
This kit fits 1965-1973 Ford Mustangs with a V8
- Mfr Part #:
- 140-16151
- Brand:
- Wilwood
- Part Type:
- Rear Disc Brake Kit
