1965-1973 Mustang Forged Dynalite Rear Electronic Parking Brake Kit4 Piston 12.19" Rotor 2.66 Offset

1965-1973 Mustang Forged Dynalite Rear Electronic Parking Brake Kit - 4 Piston 12.19" Rotor 2.66 Offset - Wilwood

Wilwood
SKU:
140-16154-MAIN
$2,185.99 - $2,323.99
Current Stock:
Adding to cart… The item has been added
Description

Forged Dynalite Rear Electronic Parking Brake Kit - 4 Piston 12.19" Rotor 2.66 Offset

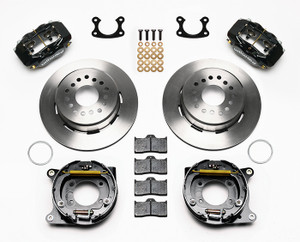

These FDL Pro-Series Rear EPB (Electric Parking Brake) Kits provide an innovative parking brake solution for popular car and truck rear axles. Forged billet aluminum Dynalite four piston calipers, 12.19” one-piece rotors, and high-friction pads provide balanced front/rear brake bias for all types of high-performance street machines. The unique EPB caliper provides secure parking with high-torque holding power, but simplifies installation with no mechanical cable connection needed. Comes complete with switch, indicator, control unit and harness assembly.

Available Options

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.

Components & Specifications

Kit Summary
Rear End Axle: Small Ford
Axle Offset: 2.66
Mount Type: Lug
Caliper Type: 4 - Red or Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Forged Dynalite Internal
Finish Color: Red or Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Type: SRP Drilled Rotor & Hat or Ultralite HP 32 & Hat
Style: SRP Drilled & Slotted or Plain Face
Surface Finish: Black Electro Coat or Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK or UHLP
Bedded: No
Dynamically Balanced: No

Vehicle Fitment Guide

This kit fits 1965-1973 Ford Mustangs with a V8

Additional Information
Mfr Part #:
140-16154
Brand:
Wilwood
Part Type:
Rear Disc Brake Kit
