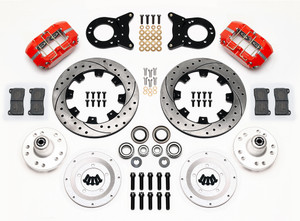

1970-1973 Mustang 6 Piston 12.19" Forged Dynapro Front Disc Brake Kit

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate-level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high-performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Available Options

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.
  • This kit requires a new set of brake lines which can be included.  Please see part #220-9195 for more details.

Components & Specifications

Kit Summary
OE Hub Offset: 0.09
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 6 - Black or Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Dynapro 6
Finish Color: Black or Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.06
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6712
Brake Pad Area (In²): 7.3
Brake Pad Volume (In³): 2.4
Pad Compound: BP-10
Rotors
Type: Ultralite HP 32 or SRP Drilled Rotor
Style: Plain Face or SRP Drilled & Slotted
Surface Finish: Plain or Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Hubs
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20

Vehicle Fitment Guide

Make - Model - Year(s)
Ford Fairlane 1970 Disc Brake Spindle
Ford Fairlane 1970 Drum Brake Front Spindle
Ford Falcon 1970 Disc Brake Spindle
Ford Falcon 1970 Drum Brake Front from 8/25/69
Ford Maverick 1970 Drum Brake Front from 8/25/69
Ford Maverick 1971-1974 Drum Brake Front Spindle
Ford Mustang 1970 Disc Brake Front Except GT350 & 500
Ford Mustang 1973 Disc Brake Front Spindle
Ford Mustang 1971-1972 Disc Brake Spindle
Ford Mustang 1970-1973 Drum Brake Front Spindle
Ford Ranchero 1970-1971 Disc Brake Spindle
Ford Ranchero 1970 Drum Brake Front Spindle
Ford Torino 1970-1971 Disc Brake Spindle
Ford Torino 1970-1971 Drum Brake Front Spindle
Mercury Comet 1971 Disc Brake Spindle
Mercury Comet 1971-1973 Drum Brake Front Spindle
Mercury Cougar 1973 Disc Brake Front Spindle
Mercury Cougar 1970-1972 Disc Brake Spindle
Mercury Cougar 1970-1972 Drum Brake Front Spindle
Mercury Cyclone 1970-1971 Disc Brake Spindle
Mercury Cyclone 1970-1971 Drum Brake Front Spindle
Mercury Montego 1970-1971 Disc Brake Spindle
Mercury Montego 1970-1971 Drum Brake Front Spindle
Additional Information
Mfr Part #:
140-12945
Brand:
Wilwood
Part Type:
Front Disc Brake Kit
