1965-1973 Mustang Fuel Sending Unit for Dakota Digital Instrument Clusters - DD

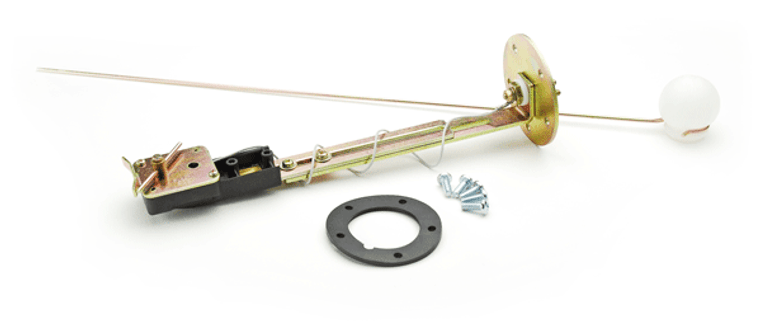

Universal Fuel Level Sender for Dakota Digital Instrument Clusters

SEN-06-1 - Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.

• Resistance range: 10 ohms empty -180 ohms full (VDO style)
• GM Style 5-bolt mounting pattern: 2.8” overall flange size,  2.125” bolt circle, 1.7” hole size
• 5x 10-32 x ½” mounting screws and gasket included
• Adjustable to tank depths of 6-23”
• Top-mount applications only; without fuel pickup or return line
• Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)

*Due to the universal nature of this sensor, verify the specifics of your application before ordering

Shipping Details:

• All orders may be shipped signature required directly from the supplier.

• For in stock items, orders typically ship within 1-2 business days.

• All VFD Instrument systems and individual digital gauges are built to order and have an estimated 2- 3 week build time before shipment.

• VHX, VLK, VLC, HDX and RTX Instrument systems are built to order and have an estimated 8-10 week build time before shipment. This is an estimated time-frame and is not a guarantee that items will ship within the above time frame due to unexpected delays.
