1965-1973 Mustang Forged Dynapro Low-Profile Dust Seal Rear Parking Brake Kit4 Piston 11" Rotor 2.50 Offset

1965-1973 Mustang Forged Dynapro Low-Profile Dust Seal Rear Parking Brake Kit - 4 Piston 11" Rotor 2.50 Offset - Wilwood

Wilwood
SKU:
140-15604-MAIN
$1,105.99 - $1,272.99
Current Stock:
Adding to cart… The item has been added
Description

1965-1973 Mustang Forged Dynapro Low-Profile Dust Seal Rear Parking Brake Kit - 4 Piston 11" Rotor 2.50 Offset

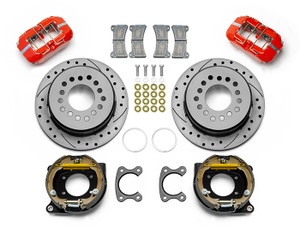

Forged Dynapro Low-Profile Dust Seal Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers with dust seals, 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Available Options

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.

Components & Specifications

Kit Summary
Rear End Axle: Small Ford
Axle Offset: 2.50
Mount Type: Lug
Caliper Type: 4 - Black or Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Forged Dynapro Lug Mount Low-Profile-Dust Seal
Finish Color: Black Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
Rotors
Type: SRP Drilled Rotor & Hat or Ultralite HP 32 & Hat
Style: SRP Drilled & Slotted or Plain Face
Surface Finish: Black Electro Coat or Plain
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK ULHP
Bedded: No
Dynamically Balanced: No

Vehicle Fitment Guide

This kit fits 1965-1973 Ford Mustangs with a V8

Additional Information
Mfr Part #:
140-15604
Brand:
Wilwood
Part Type:
Rear Disc Brake Kit
