1965-1967 Mustang Classic Series D11 Caliper Front Brake Kit - 65/66 V8/67 All - Wilwood

1965-1967 Mustang Classic Series D11 Caliper Front Brake Kit - 65/66 V8/67 All - Wilwood

Wilwood
SKU:
140-16801-MAIN
$1,050.99
Current Stock:
Adding to cart… The item has been added
Description

1965-1967 Classic Series D11 Caliper Front Brake Kit - 65/66 V8/67 All

Wilwood's Classic Series D11 four piston calipers are a direct bolt-on replacement for the original equipment Kelsey-Hayes calipers on all 1965-67 Ford Mustang, Fairlane, Ranchero, Falcon, Comet, and Mercury Cougar.

Forged billet aluminum bodies, internal fluid crossover, stainless steel pistons, and high-temperature seals put an end to the rust, leaking, bore pitting and seal failures that plague the OE caliper design. These kits feature the D11 calipers, 11.30" diameter one-piece rotors, DOT compliant stainless braided brake lines, and Promatrix performance compound pads. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb thermal stability and wear resistance. D11 calipers can use factory-style brake pads, and fit in stock location with original brackets and rotors.

Available Options

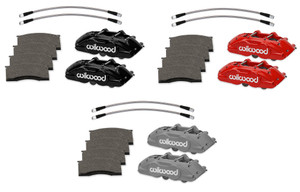

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.

Components & Specifications

Kit Summary
OE Hub Offset: 0
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Red or Black Powder Coat
Rotor Diameter: 11.3
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: D11
Finish Color: Red or Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.62
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: D11
Brake Pad Area (In²): 8.27
Brake Pad Volume (In³): 5.8
Pad Compound: PM - ProMatrix
Rotors
Type: 1 PC Hub and Rotor
Style: Plain Face or SRP Drilled & Slotted
Surface Finish: Plain or Black Electro Coat
Material: Iron
Outside Diameter (in): 11.29
Width (in): 0.94
Vane Count: Vented
Design Type: ULHP or SRP-BLK
Bedded: No
Dynamically Balanced: No

Vehicle Fitment Guide

Make - Model - Year(s)
Ford Fairlane 1966-1967 Disc Brake Spindle
Ford Falcon 1967 Disc Brake Spindle
Ford Falcon 1965-1966 Disc Brake V-8 Spindle Only
Ford Mustang 1967 Disc Brake Spindle
Ford Mustang 1965-1966 Disc Brake V-8 Spindle Only
Ford Ranchero 1966-1967 Disc Brake Spindle
Ford Ranchero 1965 Disc Brake V-8 Spindle Only
Mercury Comet 1967 Disc Brake Spindle
Mercury Comet 1965-1966 Disc Brake V-8 Spindle Only
Mercury Cougar 1967 Disc Brake Spindle
Mercury Cyclone 1967 Disc Brake Spindle
Additional Information
Mfr Part #:
140-16801
Brand:
Wilwood
Part Type:
Disc Brake Kit
